Plastic granules making machine PP PE pellet production line for
recycling use
Pellet production line General description
1 . This series Double Stage Pelletizing Line is mainly designed
for processing PE,PP rigid flakes or waste film flake.
2 . The advantage of the double stage pelletizing line is better
melting and the material is more clean after two filtering from
screen changers.
3 . It is an ideal machine for the kinds of little bit dirty
material.
4 . For screw L/D varies according to the material condition,for
example,rigid material or film flakes.
Feathers
1 . Fully automatic
2 . High capacity and stability
3 . High effiency for PP PE rigid or film flakes.
4 . CE Certificate
Note:The capacity is based on the raw material .The output for
rigid flake and film flake are different,as well as the material.We
offer solution based on the client's actural requirements.
Constituent
1 . A set of belt conveyor
2 . A set of side force fedder machine
3 . A set of double stage extruders
4 . A sst of screen change
5 . A set of cooling tank(with water cooling and wind cooling)
6 . A set of granules cutter
The Gearbox for twin screw extruder
1 . New-style project of parallel three-axises driving makes the
convey axis,convey chain,decelerate and the torque assignment get
together,which keeo it compact,and the key bearings are imported.
2 . The select material of drive components is dainty. Including
super intension alloy cementiteing steel,cementiting and quenching
,gear grinding technics ,strengthening of tooth face.So they can
ensure high torque,high precision and low noise.
3 . Soakage and coerce lubrication integrate smoothly.When the
hydraulic circuit is over pressed, it alarms
Plastic granules making machine PP PE pellet production line for
recycling use
1 . Rectangle barrel,reflux refrigeration is optimized and
disposed,which makes temperature difference in C areas smaller.
2 . According to the material and special techinics demands,the
material of cylinder can use high quality nitrided steel,corrosion
proof or antifriction with corresponding process.
3 . The screw material is made of high tool steel 38CrMoALA or
W6Mo5Cr4V2 by special heat-treament.
Details
1 . This PET bottle recycling granulating line / extruder machinery
uses SHJ series parallel twin screw extruder, is suitable for
producing PET granules from clean PET flakes.
2 . This machine is composed by SHJ parallel twin screw extruder,
die, hydraulic screen exchanger, cooling flume, air dryer, cutter,
silo, and could also be applied to other material like PET PP PE PA
ABS etc.
3 . The SHJ series extruders are specially designed for PET
bottles, flakes, PVC, Plastic sheets and other crushed materials,
with good performance, high output, less power consumption cost per
kilogram, and easy operation.

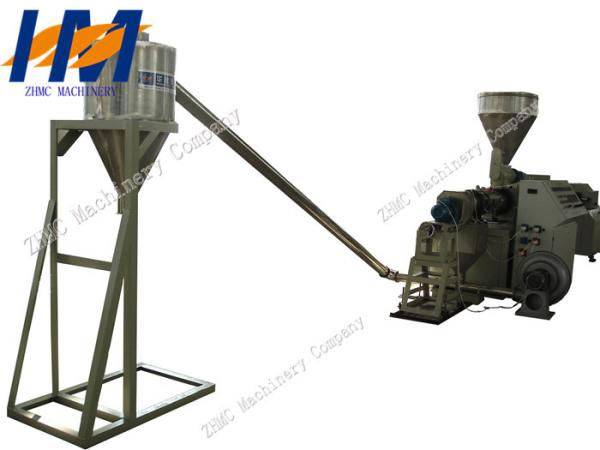

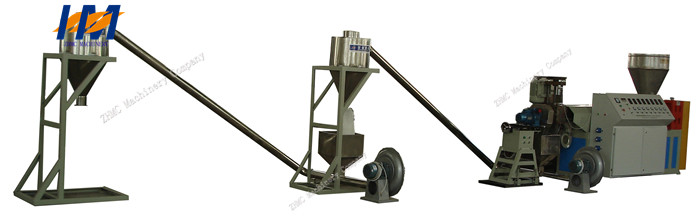

Product Display
