Plastic PVC PE PP PPR Agriculture Water Extruder plastic tubing
extrusion machines
Plastic PVC PE PP PPR Agriculture Extrusion Brief Introduction
1. 160-450mm PE Pipe Extrusion machine is mainly used for producing
gas supplying pipe, water supplying pipe, cable protection pipe
etc.
2. The pipe has some excellent features such as low temperature
impact resistance, reliable connection, good stress crack
resistance, good chemical resistance, good wear resistance, long
using life, etc. our extrusion line is designed with high
efficiency extruder and equipped with reducer which is high speed
and low noise.
3. Gravimetric dosing unit and ultrasonic thickness indicator can
be assembled according to customer's demand to ascend the precise
of the pipes .
4. Turn key solution can be provided, like laser printer crusher,
shredder, water chiller, air compressor etc. to achieve high-grade
and automatic tube production.
Characteristics of electric conduit pipe machine
1 . one die double out or four out, it greatly increase the
productivity, meantime, it reduces the cost of machine, power
consumption, save space of workshop
2 . Speed of extruding, haul off machine are controlled by variable
frequency inverter, stepless adjusting speed and save power
consumption
3 . Water cooling tank are made of high qulity 304 stainless steel,
no rusty, longer lifetime.
4 . Temperature controlled by intelligent temperature controller,
high precision, automatic control, save labor and easy to operate.
Process Flow
Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic
Hopper Drier→ Single Screw Extruder →Co-extruder for color string &
Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling
Water Tank → Haul-off → No Dust Cutter →Stacker → Final Product
Inspecting &Packing
Applications
| 1 | High efficiency PP-R PE-RT PB pipes are widely used in the uptown
apartment and village cables protection hot water supplying house
heating. |
| 2 | This production line adopts high efficiency single screw extruder
equipped with the Siemens PLC controlling system. |
| 3 | It can ensure the whole line automatic controlling of high capacity
stable extruding with the suitable changing of different units
could realize the production job of PP-R PE-RT PB pipe. |
Main technical parameter of PE pipe production line
| Model | Pipe range(mm) | Extruder Model |
| SWD-63 | Φ20-63 | SJ65/33 or SJ65/38 |
| SWD-63(Double outlet) | Φ20-63 | SJ65/38 |
| SWD-110 | Φ20-110 | SJ65/33 or SJ65/38 |
| SWD-110(Double outlet) | Φ20-110 | SJ75/38 |
| SWD-160 | Φ50-160 | SJ75/33 or SJ75/38 |
| SWD-250 | Φ90-250 | SJ75/33 or SJ75/38 |

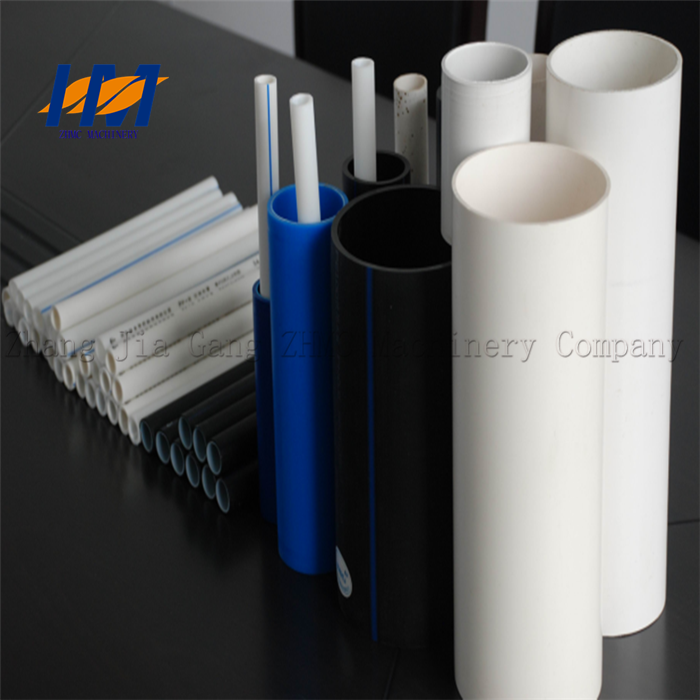

Product Display
