PC PMMA PS MS Sheet Board plastic extruder machine pvc garden pipe
machine
PC PMMA PS MS Sheet Board plastic extruder Application and
Advantages
1. Cabinet lighting Storage shelves lighting Furniture lighting
Wall, floor lighting Interior & external decoration lighting
2. High Light Transmission more than 80%
3. Excellent diffusion
4. Excellent weather ability
5. UV resistance
6. Optimum light dispersion
7. Excellent performance for LED lighting
Product Application
1. High eficiency PC profiles production line is mainly used in PC
plastic steel doors and windows profile,window panels, perforated
pipe threading and foam profile extrusion products.
2. The production line according to the different requirements of
customers and cross-sectional shape of the mold, you can choose the
most suitable twin-screw extruder , and equipped with the
appropriate vacuum forming .
3. Cutting and other auxiliary traction.
Single layer & multi-layer sheet co-extrusion line
1. Adopts different screw structure, mould design and down-stream
equipments for different production requirements. Can be applicable
for the manufacturing of ABS, PMMA, HIPS, PS sheet,PC, PP, PE The
maximum width is 2,500mm, thickness is ranging from 1mm-12mm.
2. It is widely used for inner case of refrigerator, the case of
bathtub, bathroom and household electric appliance and etc.
3. According to different material , thickness,there are different
calander roll stack system avaible. 45 DEGREE style, virtical
style, horeizon style or some special design.
4. Produce PP PS PE PVC ABS POM PC sheet
5. Automatically hydraulic screener changing
6. qualified die-head
7.Adopt 38CRMOALA high qality material with nitrogen treatment for
the scerw ,barrrel ,module head and so on, so there parts can be
used with wear and corrosive resisance .
With larger diameter for screw ,guarantee the main performance of
sheet with good plasticizing.
For die head ,adopt advanced electric or hyduaulic exchanging
device for filtering net, sothe operation was simplified
this series extruder is composed of 6parts,extruder part ,filter
part,die-head part,three rollers part,and traction part, rewinding
part
Main Technical Parameters
| Model | L/D | Capacity (kg/h) | Screw Speed (rpm) | Power (kw) | Center Height (mm) |
| SJ-25 | 25-30/1 | 1-5 | 120 | 1.1-2.2 | 1000 |
| SJ-45 | 25-38/1 | 20-80 | 120 | 7.5-22 | 1000 |
| SJ-65 | 25-38/1 | 60-200 | 120 | 37-55 | 1000 |
| SJ-75 | 25-38/1 | 120-400 | 120 | 55-110 | 1000 |
| SJ-90 | 25-38/1 | 250-600 | 120 | 55-180 | 1200 |
| SJ-120 | 25-38/1 | 600-1000 | 90 | 90-315 | 1200 |
| SJ-150 | 25-38/1 | 1000-1300 | 90 | 110-380 | 1200 |

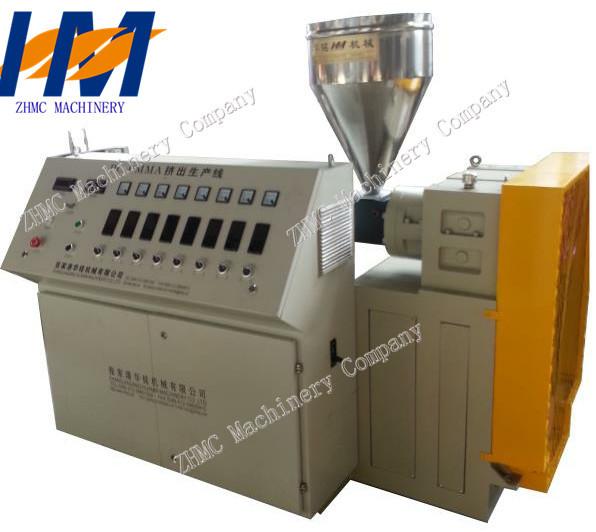

Product Display
