UPVC profile window pvc profile extrusion line plastic channel extrusion

UPVC profile window pvc profile extrusion line Products Advantages

1. Specification :Different countries have different demands for it; Special shaped windows also can produce. You can design the windows by yourself

2. Glass:Low-E glass, Tempered glass, floated glass, reflective glass, OBS glass, etc.

3. Hardware:High quality Chinese hardware, Guoqiang (Multi-point lock and handle) , G-U or ROTO also can be used

4. Reinforcement steel:U form galvanized steel; 1.2mm, 1.5mm, 2.0mm, 2.5mm

5. Opening style:Sliding, casement, turn-tilt, tilt-sliding, single-hung, double-hung, etc.

6. Window style:European style; American style

Extruder

Extruder Its special extruding screw systems , precise manufacturing data , temperature controls and speed adjusting systems ensure stable good extruding ;

Dies

Dies Excellent Cr-plated heat resistant steel alloy is applied for T-dies , which flowing channels are of clothes-hanger type design , with excellent flow distributing systems , to make sure that flows can go evenly to all the whole dies ; A adjusting system equipped onto up and down die lips , to make sure that all sheets have good thicknesses ;

Vacuum forming tank

Vacuum former Vacuum system and forming system are well designed and located ; equipped with a quick heat exchange die , forming systems and cooling system is well and precisely located among vacuum systems in good orders ; vacuum systems are composed of 2 independent sub-systems , each of them are equipped with many triangle type close-circuit vacuum tubes ; all close circuit systems are equipped with vacuum conditioning and monitoring systems , to make sure to have a stable and even vacuum degree on all sheet surfaces ;

Haul-off machine

Haul-off machine The 1st one is big power and of big decelerate ratio , equipped with many rollers , it has a excellent low speed working , while its big hauling-off can draw sheets evenly out from vacuum former ; The 2nd haul-off draws sheets out from heating oven ; The 3rd and 4th haul-off are for transmission and unloading ;

Heating oven

Heating oven ( annealing oven ) working together with the 1st and 2nd haul-offs , its multi-zones infrared constant temperature heating systems give good annealing to sheets , improving all sheets flatness ;

cutting machine

A precise auto short-time fixed length cutting systems and auto a lift type unloading system are equipped ;

Electronic control

Electronic control both panel control and PLC control systems are chosen

Machine List

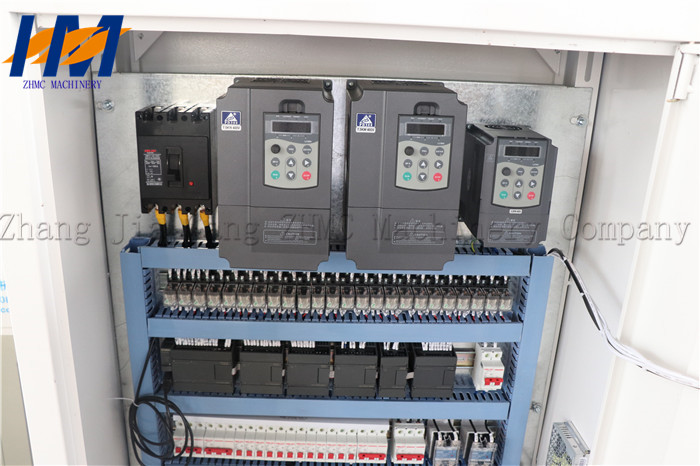

Detailed Picture of Electrical Cabinet

Zhangjiagang ZHMC Machinery Company

With years of development,ZHMC machinery becomes a professional supplier with mature technology,experienced marketing staff and arduous technical team.

Basiing on every effort of ZHMC people,a wide range of products supply scope has formed as follows:plastic pipe production line,plastic profile(window & door,PS foaming bolection plastic & wood) production line,plastic sheet / plate production line,packing cutter,dryer,loader and other auxiliary machines. ZHMC is now ready to establish business relationship with customers at home and abroad,we are always at your service with our full consideration.

ZHMC machinery will focus on products innovation,and pay more attention on improvement of product performance. Our aim is to satisfy customers' every requirement with our intention and innovation. We are ready to be your reliable and long-term partner.
