Plastic vertical mixer with heating function silo blender heating
Plastic vertical mixer Features
1. Our company vertical plastic mixer uses rapid rotation of screw
to elevate materials from bottom to top and throws in umbrella
shape to the bottom so that materials will roll and mix in the drum
evenly and efficiently.
2. The spiral repeated mixing of propeller blade inside enables
materials to be mixed more evenly and rapidly.
3. Suitable to mix all kinds of plastic materials and color master
batch.A better performance when new and old and color master batch
are mixed together.
4. All contact parts between equipment and materials are made of
stainless steel,which is easy to wash and may avoid rust.
5. One power control security protection device is set to ensure
safe operation.
6. Provision of tailoring drying function.
Vertical Plastic Mixer Machine Information
Eronte spiral-type vertical mixer utilizes its fast rotating spiral
blades to lift materials from the hopper to the top and then throw
them down into barrel. In this way, materials are mixed and
stirred.
The vertical mixer application range covers: color masterbatch
mixing, waste recycled flakes mixing, granule mixing, pellets+
flakes mixing, grains corn mixing and so on.
Details
1. Helical circular mixture, fast and evenly stirring.
2. Suitable for all kinds of plastic raw materials and color
masterbatch or granules.
3. Fully stainless steel contacting parts, rust free and easy to
clean.
4. Installed with power control device to ensure safety.
5. Customizable for drying type model.
6. Vertical blender are able to perform even mixture for large
volume of materials in short mixing time by utilizing the paddles
rotation to gather the materials from the bottom of dump center to
the top, shed the material flow back to the bottom and complete the
mixing function in short period of time.
Specification
| Model | Rotatry Speed (r/min) | Rotatry Speed (r/min) | Size (mm) | D*H Weight (KG) | Capacity (Kg/h) |
| BL1000 | 3 | 280 | 1.3*2.5 | 800 | 1000 |
| 1000 | 5 | 280 | 1.6*2.9 | 1200 | 2000 |
| 2000 | 7.5 | 280 | 2*3.6 | 1500 | 3000 |
| BL5000 | 11 | 280 | 2.4*4.5 | 2000 | 5000 |
| Model | Power | Rotating Speed(R/MIN) | Capacity(kg) | Dimensions(MM) |
| QZ-L500 | 4HP | 4KW | 350 | 500 | 1200*2500 |
| QZ-L1000 | 4HP | 4KW | 350 | 1000 | 1500*2750 |
| QZ-L1500 | 4HP | 5.5KW | 350 | 1500 | 1650*3300 |
| QZ-L2000 | 4HP | 5.5KW | 350 | 2000 | 1850*3300 |
| QZ-L3000 | 4HP | 7.5KW | 350 | 3000 | 2000*3750 |
| QZ-L5000 | 6HP | 7.5KW | 350 | 5000 | 2400*4350 |
| QZ-L7500 | 6HP | 11KW | 300 | 7500 | 2600*5100 |
| QZ-L8000 | 6HP | 11KW | 300 | 8000 | 2750*5100 |
| QZ-L10000 | 6HP | 11KW | 300 | 10000 | 3000*5300 |
| QZ-L12000 | 6HP | 15KW | 300 | 12000 | 3100*5850 |
| QZ-L15000 | 6HP | 15KW | 300 | 15000 | 3100*6500 |
Our Services
1. We could send engineers to the buyer's factory for installation
instruction, commissioning and training service at buyer's cost.
2. Our machine has 12 month guarantee since the installation in
buyer's factory. During the guarantee time, if any parts (except
the easy damaging parts) are damaged under normal operation, we
will offer free spare parts. After the guarantee time, we will
offer the spare parts with cost price.
3. If the buyer have any problem during the operation, we will
offer technical solutions.

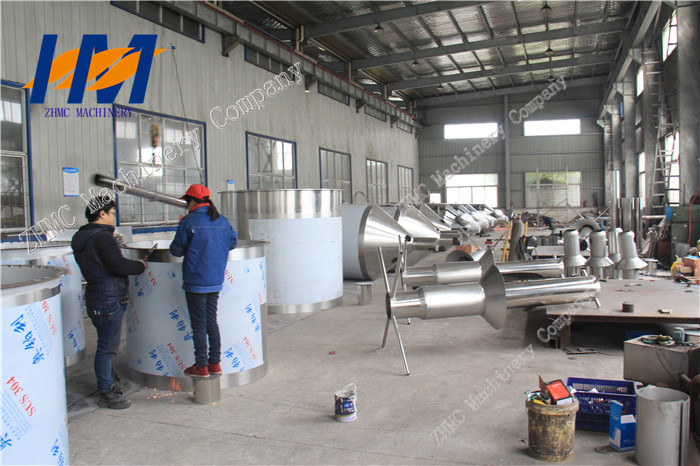

Workshop display
